Description
High performance refrigerating system
Separate chamber for ice condensing and drying, easy operation and fast drying
Quiet operation, 24 hours continuous and unattended
Stainless steel inner surfaces, excellent anti-corrosion
Clear acrylic glass drying chamber door, drying process observable
Purge valve optional for inner gas protection
Heated sample shelves, temperature controllable by microprocessor
Sample heating temperature (-45~55°C) programmable by PID
Digital LCD display and drying curve plotting
Ice condenser temperature <-60°C
Vacuum limit <10Pa

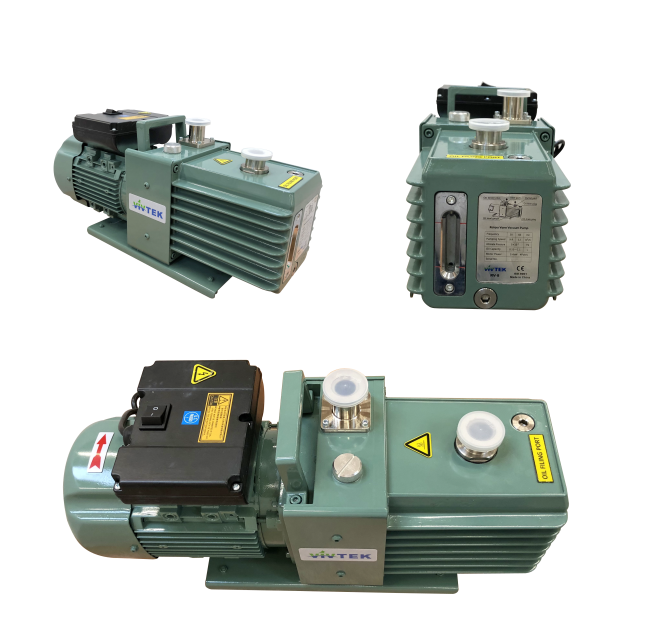

Vacuum pump AC230V 550W, 240L/min 9.0cfm or VacStar-RV16 15.0cfm
Voltage input AC230V 1P or 3P 50/60Hz
Warranty: 12-month manufacturer limited
Separate chamber for ice condensing and drying, easy operation and fast drying
Quiet operation, 24 hours continuous and unattended
Stainless steel inner surfaces, excellent anti-corrosion
Clear acrylic glass drying chamber door, drying process observable
Purge valve optional for inner gas protection
Heated sample shelves, temperature controllable by microprocessor
Sample heating temperature (-45~55°C) programmable by PID
Digital LCD display and drying curve plotting
Ice condenser temperature <-60°C
Vacuum limit <10Pa
Vacuum pump AC230V 550W, 240L/min 9.0cfm or VacStar-RV16 15.0cfm
Voltage input AC230V 1P or 3P 50/60Hz
Warranty: 12-month manufacturer limited
| Model | Area | Shelves | Tray Size | Dimensions |
Compressor |

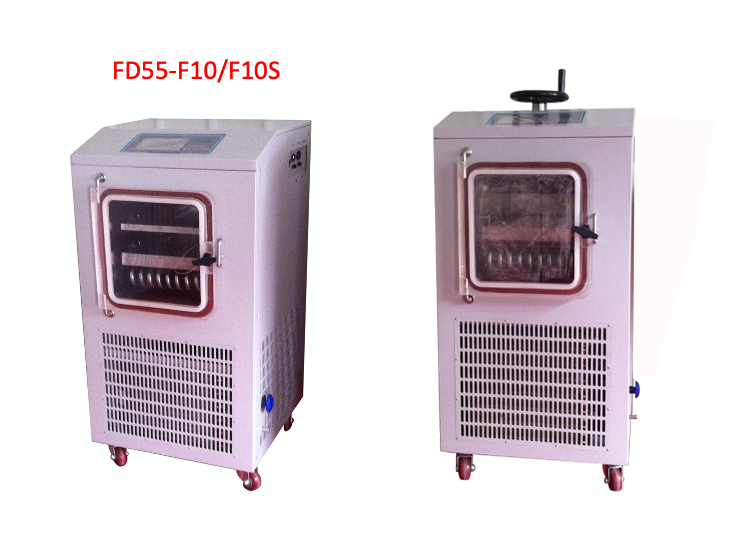

| FD55-F10 | 0.2m2 | 2 | 27x40cm | 65x55x100cm |
735W |
| FD55-F10S | 0.1m2 | 1 | 27x40cm | 65x55x120cm |
735W |

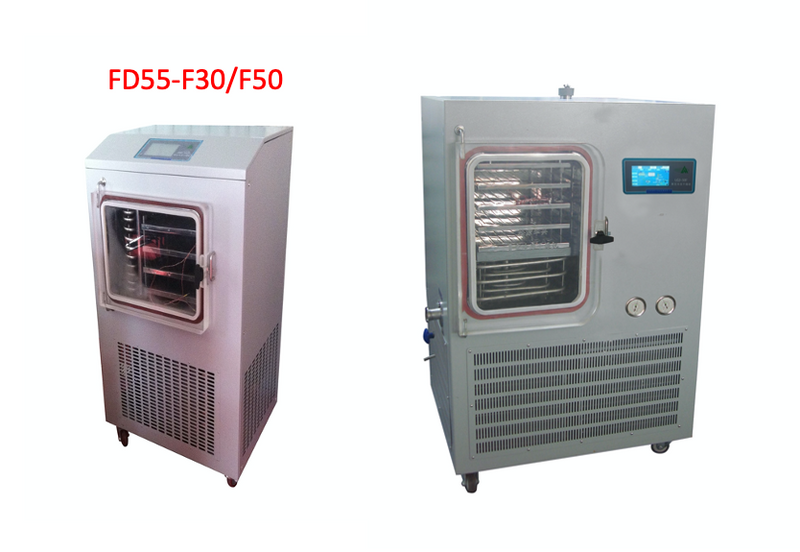

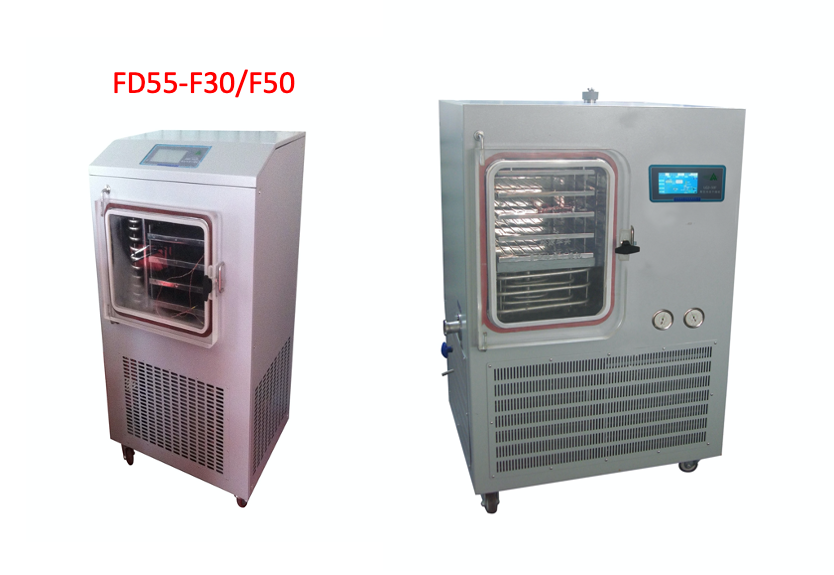

| FD55-F30 | 0.4m2 | 4+1 | 30x32cm | 65x80x140cm |
1500W |
| FD55-F50 | 0.7m2 | 4+1 | 36x50cm | 75x100x150cm | 3000W |
| Model | Spacing | Serum Bottles | e-Heating | Capacity | Voltage |
| Φ22/ Φ16/ Φ12 | |||||
| FD55-F10 | 70mm | 185/385/600 |
400W | 3kg/day |
AC230V 1P |
| FD55-F10S | 70mm | 185/385/600 |
400W | 2kg/day |
AC230V 1P |
| FD55-F30 | 50mm | 370/770/1200 |
800W | 6kg/day | AC230V 1P |
| FD55-F50 | 4+1 | 550/1150/2400 |
1600W | 10kg/day | AC230V 3P |
