Description
Full stainless steel structure, surface polished
SUS316 for all contact surfaces, SUS304 for structure and outer shells

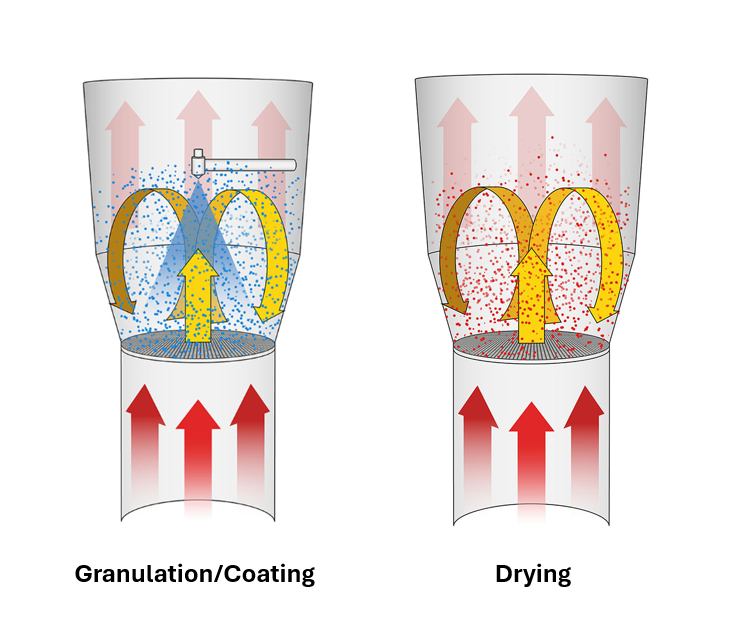

Two fluid nozzle for spraying binder and coating fluid
Air filter for inlet air and dust remover by baghouse
In-tower pressure -5~+5KPa, monitored by gauge
Heating methods: electrical heating, gas heating or stream heating
Air inlet temperature range: Room+20℃ -140℃
Temperature precision: ± 1℃
Bag house filter system for dust removal
Batch operation mode, processing time 30-120min
Advanced temperature control system using Siemens PLC and Delta module
10-inch Siemens HMI touch screen for easy operation
Main fan blower controlled by VFD
Voltage input AC230V or 480V three phase
Onsite installation and training service available and optional
One-year standard Col-Int Tech warranty
| Model | Capacity | Volume | Min Loading | Diameter | Air Rate |
| FBD-P3 | 4kg | 12L | 1.5kg | 300mm | 15m3/min |
| FBD-P5 | 6kg | 22L | 4.0kg | 400mm | 20m3/min |
| FBD-P15 | 20kg | 45L | 10kg | 550mm | 25m3/min |
| FBD-P30 | 40kg | 100L | 15kg | 700mm | 30m3/min |
| FBD-I50 | 90kg | 200L | 30kg | 1000mm | 50m3/min |
| FBD-I100 | 150kg | 400L | 75kg | 1200mm | 75m3/min |
| FBD-I200 | 400kg | 800L | 125kg | 1500mm | 100m3/min |
| FBD-I500 | 750kg | 1500L | 250kg | 1800mm | 135m3/min |
| Model | Heating Power | Compressed Air Use | Dimensions | Weight | Voltage |
| FBD-P3 | 12KW | 0.9 m3/min | 1.0x0.6x2.1m | 500kg | AC230V 3P |
| FBD-P5 | 18KW | 0.9 m3/min | 1.2x0.8x2.1m | 750kg | AC230V 3P |
| FBD-P15 | 27KW | 0.9 m3/min | 1.3x0.9x2.5m | 900kg | AC230V 3P |
| FBD-P30 | 45KW | 1.0 m3/min | 1.6x1.1x2.5m | 1000kg | AC480V 3P |
| FBD-I50 | 75KW | 1.0 m3/min | 1.9x1.5x3.0m | 1100kg | AC480V 3P |
| FBD-I100 | 120KW | 1.0 m3/min | 2.2x1.8x3.3m | 1300kg | AC480V 3P |
| FBD-I200 | 250KW | 1.5 m3/min | 2.4x1.8x3.8m | 1600kg | AC480V 3P |
| FBD-I500 | 450KW | 2.0 m3/min | 3.0x2.5x4.5m | 2000kg | AC480V 3P |
