Description

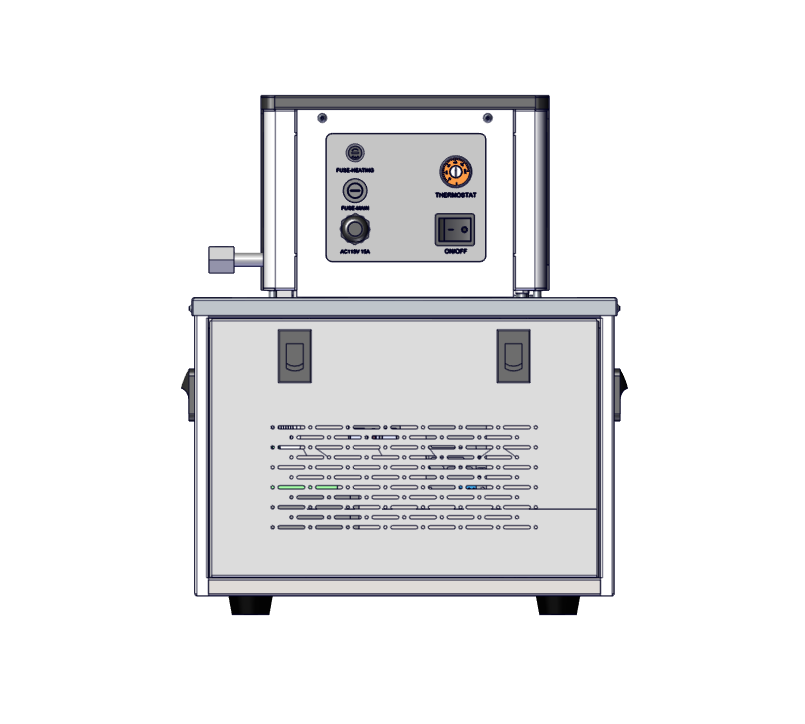

General heated water/oil bath and circulator
Stainless steel tank, seamless welding, leakage tested
Merged stainless steel heating rods
Liquid level sensor switch for shutoff
External thermostat for extra protection
Maximum temperature 200 ℃ (ceramic fiber insulation)
Brushless DC motor driven pump, long lasting
Pump speed 20L/min for H08/H16 and 35L/min for H32/H64

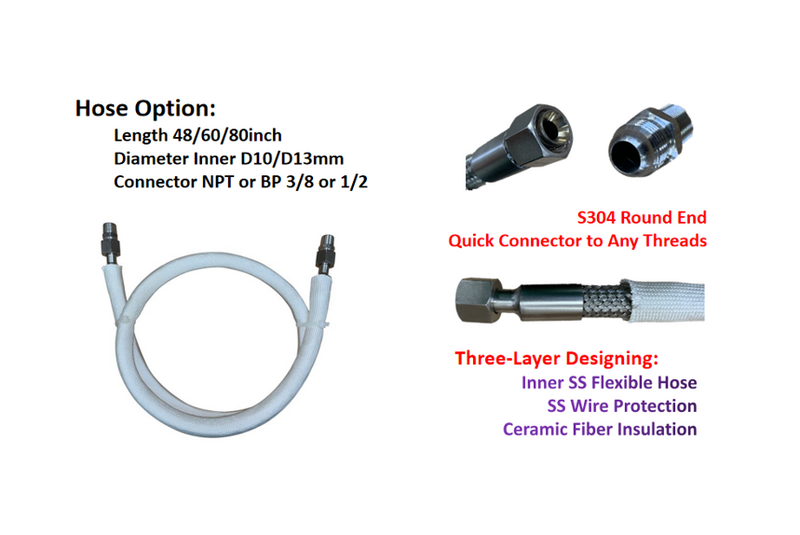

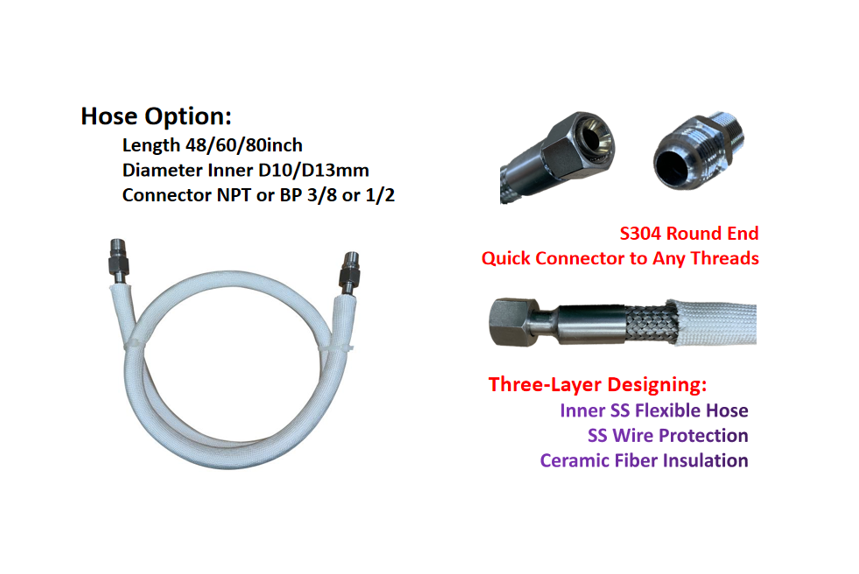

Connector female NPT3/8 for H08/H16 and NPT1/2 for H32/H64
Excellent insulation to prevent heat loss and improve energy efficiency
PID temperature controller with PT-100 RTD sensor
7-inch touch screen control panel
Over-temperature protection built-in
One year standard warranty for worry free use
Stainless steel tank, seamless welding, leakage tested
Merged stainless steel heating rods
Liquid level sensor switch for shutoff
External thermostat for extra protection
Maximum temperature 200 ℃ (ceramic fiber insulation)
Brushless DC motor driven pump, long lasting
Pump speed 20L/min for H08/H16 and 35L/min for H32/H64
Connector female NPT3/8 for H08/H16 and NPT1/2 for H32/H64
Excellent insulation to prevent heat loss and improve energy efficiency
PID temperature controller with PT-100 RTD sensor
7-inch touch screen control panel
Over-temperature protection built-in
One year standard warranty for worry free use
| Model | Tank Vol. |
Heating AC115/230V | Pump |
Amp AC115/230V |
| LBC-H05T100 | 5L |
600W/600W | 100W/20L/min |
6A/4AV |
| LBC-H15T100 | 15L |
1200W/1500W | 100W/20L/min | 10A/8A |
| LBC-H25T100 | 32L |
---/2500W | 160W/35L/min | ---/15A |
