Description
Joule flash heating system with tube reactors
Direct DC discharge using large capacitor power banks
Flash heating to temperature up to 3000 ℃ instantly
DC power 0-600V 600W, constant current and voltage
Capacitor bank: 6x33000uF (~200mF)
Working voltage: 0-500V DC
Working current: 0-50A
Max instant Current: 150A
Timing control accuracy: +/-0.01S

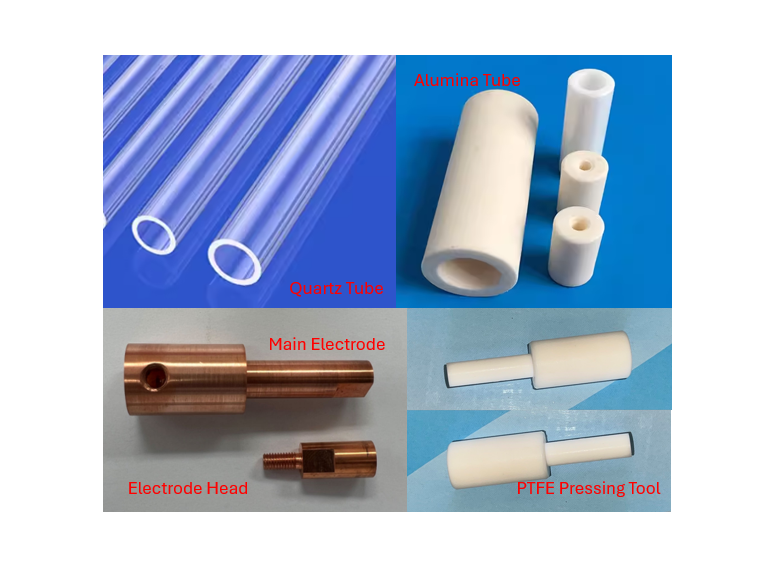

Electrodes: pure copper diameter 10/15/20mm
Flexible electrode design, easy to switch between different sizes
Reactor tube: quartz ID=10/15/20mm
Compressing method: automatic, Servo motor driven with Load Cell transducer
Pressing force: 0-200N
Infrared temperature detector/sensor 500~3500 ℃
Auto temperature recording and plotting
Reactor chamber: atmosphere controlled box with gas in/out ports
Controller: 7 inch touch screen, charging/discharging/voltage/alarming
Power supply: AC 115V or 230V 50/60Hz
