Description

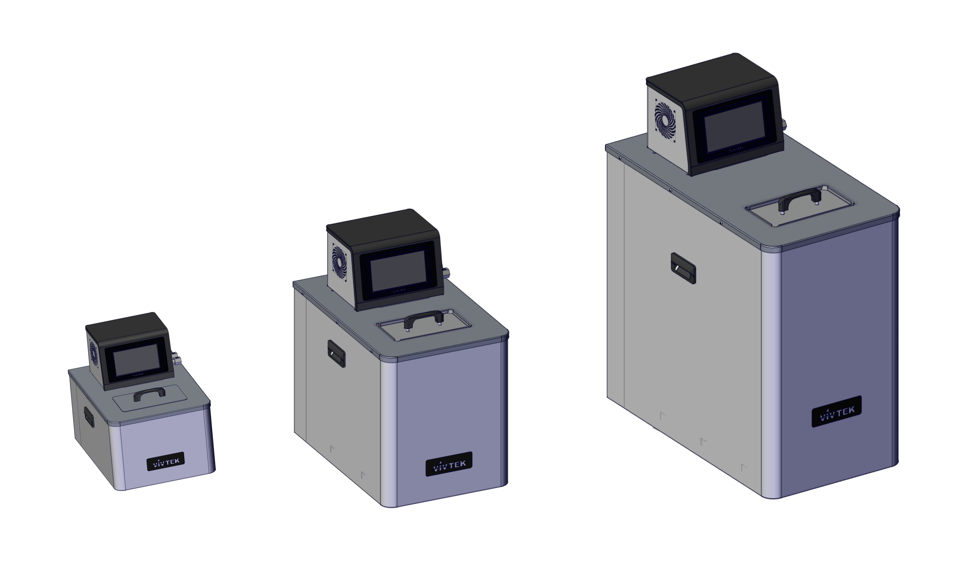

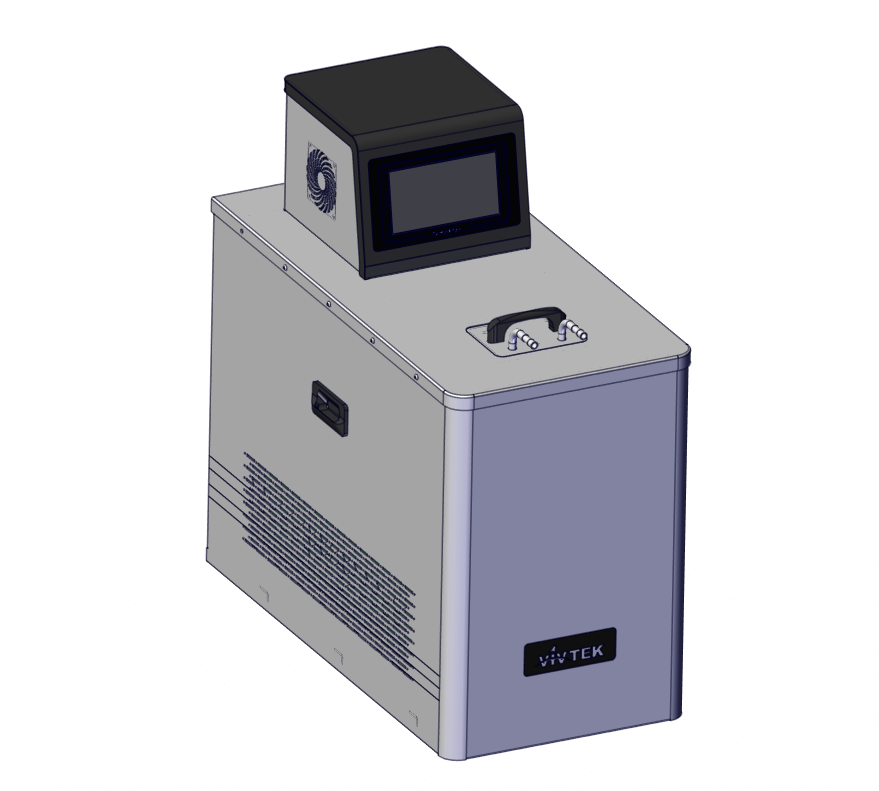

Next generation heated water/oil bath and circulator

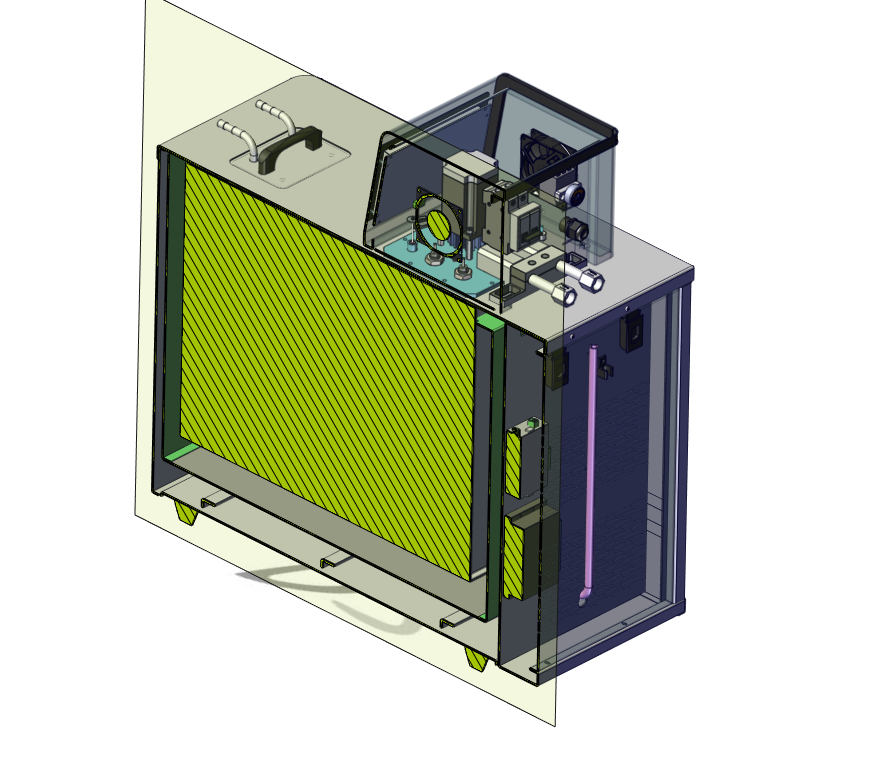

Dual-shell structure for better insulation and higher safety
Very low surface temperature even at >200℃
Stainless steel tank, seamless welding, leakage tested
Merged stainless steel heating rods
Liquid level sensor switch for shutoff
External thermostat for extra protection
Maximum temperature 300 ℃ (ceramic fiber insulation)
Brushless DC motor driven pump, long lasting
Pump speed 20L/min for H08/H16 and 35L/min for H32/H64

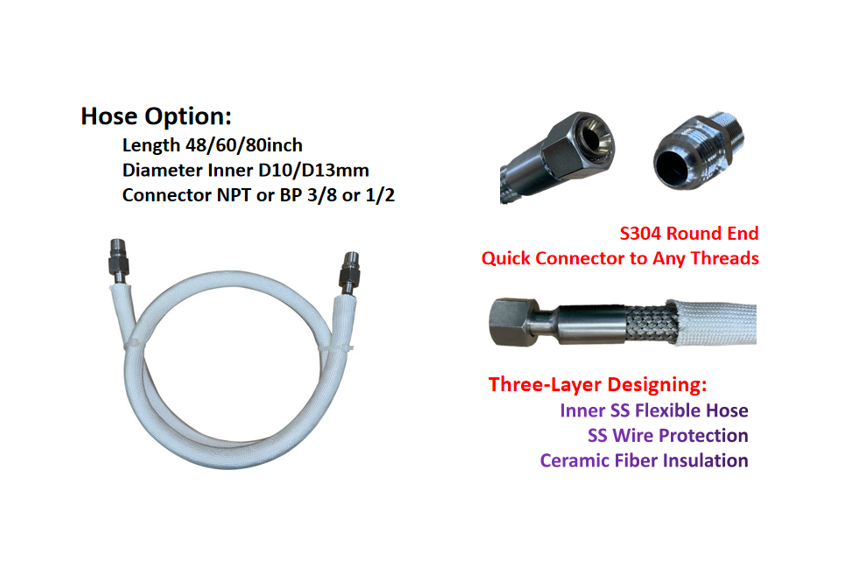

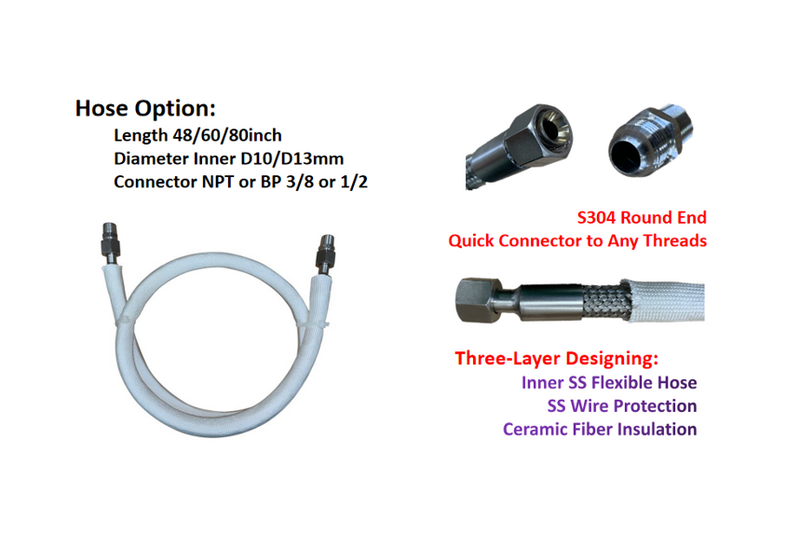

Connector female NPT3/8 for H08/H16 and NPT1/2 for H32/H64
Excellent insulation to prevent heat loss and improve energy efficiency
PID temperature controller with PT-100 RTD sensor
7-inch touch screen control panel
Over-temperature protection built-in
One year standard warranty for worry free use
Dual-shell structure for better insulation and higher safety
Very low surface temperature even at >200℃
Stainless steel tank, seamless welding, leakage tested
Merged stainless steel heating rods
Liquid level sensor switch for shutoff
External thermostat for extra protection
Maximum temperature 300 ℃ (ceramic fiber insulation)
Brushless DC motor driven pump, long lasting
Pump speed 20L/min for H08/H16 and 35L/min for H32/H64
Connector female NPT3/8 for H08/H16 and NPT1/2 for H32/H64
Excellent insulation to prevent heat loss and improve energy efficiency
PID temperature controller with PT-100 RTD sensor
7-inch touch screen control panel
Over-temperature protection built-in
One year standard warranty for worry free use
| Model | Tank Vol. |
Heating AC115/230V | Pump |
Amp AC115/230V |
| LBC-H08T300 | 8L |
1200W/1200W | 100W/20L/min |
10A/5AV |
| LBC-H16T300 | 16L |
1500W/3000W | 100W/20L/min | 15A/15A |
| LBC-H32T300 | 32L |
--- /4000W | 160W/35L/min | ---/20A |
| LBC-H64T300 | 64L |
--- /9000W | 160W/35L/min | ---/50A |
