Description

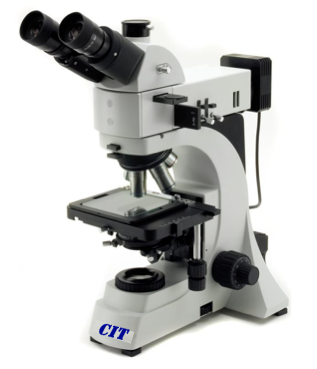

Model: MET-800Z Upright
Heads: Trinocular, 30º inclined, 360º rotating
Eyepieces: WF10X/22mm
Noseplece: 5 positions
Objectives: Infinity optical system (IOS) MET
Planachromatic: 5X, 10X, 20X, 50X, 100X
Stage: Double layer with mechanical sliding
Stage Size: 175x145mm
XY Moving: 75x50 mm
Focusing System: Coaxial course and fine
Condenser: 0.7 N.A. swing-out type with Iris diaphragm, centrable and focusable
Illumination System: 12V/50W halogen centrable illuminator Brightness is adjustable

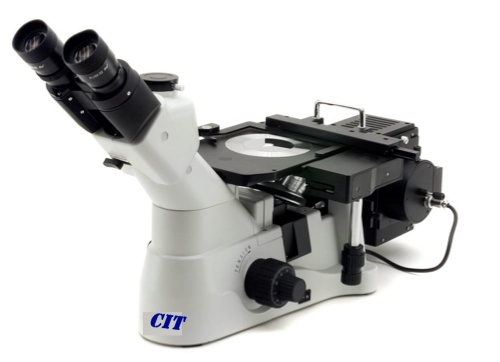

Model: CIT-MET-800D Inverted
Heads: Trinocular, 45º inclined Eyepieces: WF10X/22mm
Noseplece: 5 positions
Objectives: Long working distance, MET
Planachromatic: 5X, 10X, 20X, 50X
Stage: Mechanical state with lowered ergonomic coaxial control
Stage Size: 250x230mm
XY range 114x80 mm
Focusing System: Coaxial course and fine
Condenser: Field and aperture diaphragm, centrable and focusable Illumination System: 12V/50W halogen centrable bulb in external case; Brightness is adjustable
Heads: Trinocular, 30º inclined, 360º rotating
Eyepieces: WF10X/22mm
Noseplece: 5 positions
Objectives: Infinity optical system (IOS) MET
Planachromatic: 5X, 10X, 20X, 50X, 100X
Stage: Double layer with mechanical sliding
Stage Size: 175x145mm
XY Moving: 75x50 mm
Focusing System: Coaxial course and fine
Condenser: 0.7 N.A. swing-out type with Iris diaphragm, centrable and focusable
Illumination System: 12V/50W halogen centrable illuminator Brightness is adjustable
Model: CIT-MET-800D Inverted
Heads: Trinocular, 45º inclined Eyepieces: WF10X/22mm
Noseplece: 5 positions
Objectives: Long working distance, MET
Planachromatic: 5X, 10X, 20X, 50X
Stage: Mechanical state with lowered ergonomic coaxial control
Stage Size: 250x230mm
XY range 114x80 mm
Focusing System: Coaxial course and fine
Condenser: Field and aperture diaphragm, centrable and focusable Illumination System: 12V/50W halogen centrable bulb in external case; Brightness is adjustable
