Description

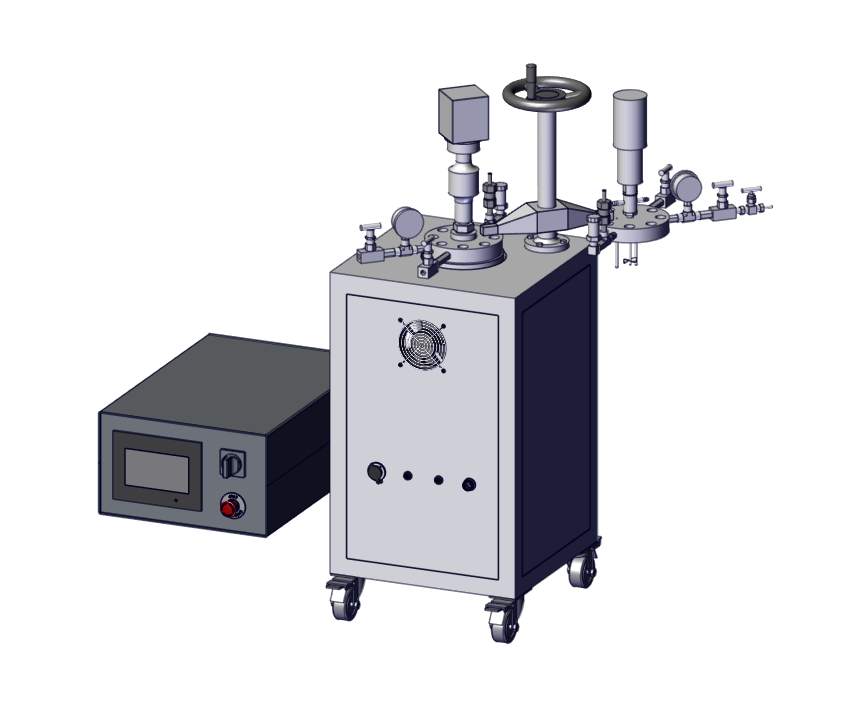

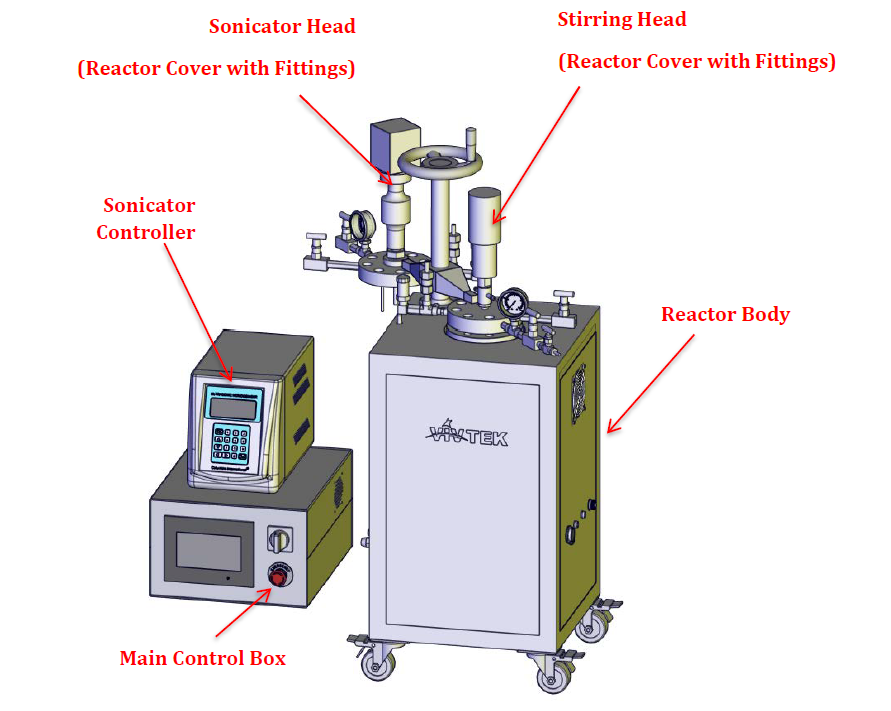

A complete set of high pressure reactor with ultrasonication and microwave
Combined benefits of high-pressure, ultrasonication and/or microwave
Volume: 500/1000/2000 mL
Temperature: Room~300℃
Pressure: Maximum 8MPa
Material: vessel SUS316L stainless steel with glass flange bottom
Optional PTFE inner chamber or glass/quartz cup
Swagelok needle valve and VivTek fittings installed (pressure gauge)
Gas port and liquid dipping tube port using Swagelok needle valves
Ultrasonicator: power 1500-2000W ouput adjustable, 24KHz
Agitator: sonication or magnet coupled mechanical stirring
Stirring 150W gear motor, controlled by VFD, speed 0-1200RPM
Heating method: heating jacket + microwave
Heating control: PID or power setting
Electrical heating jacket up to 200C
Microwave heated up to 1000 watts
Microwave, 2450 MHz, power adjustable

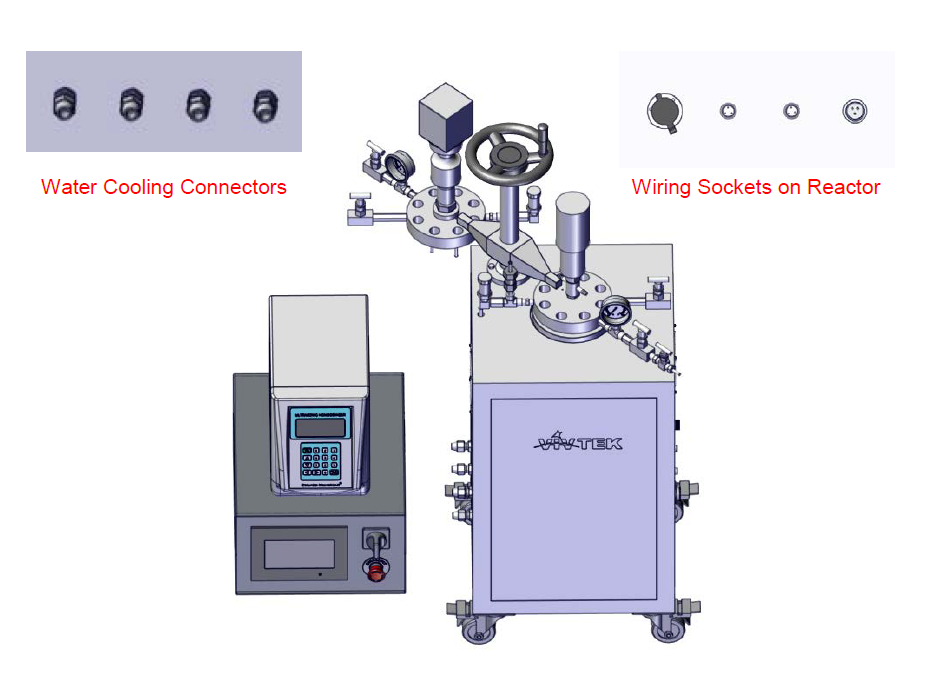

Two CW-3000 chillers for cooling magnetron and magnet coupled stirring

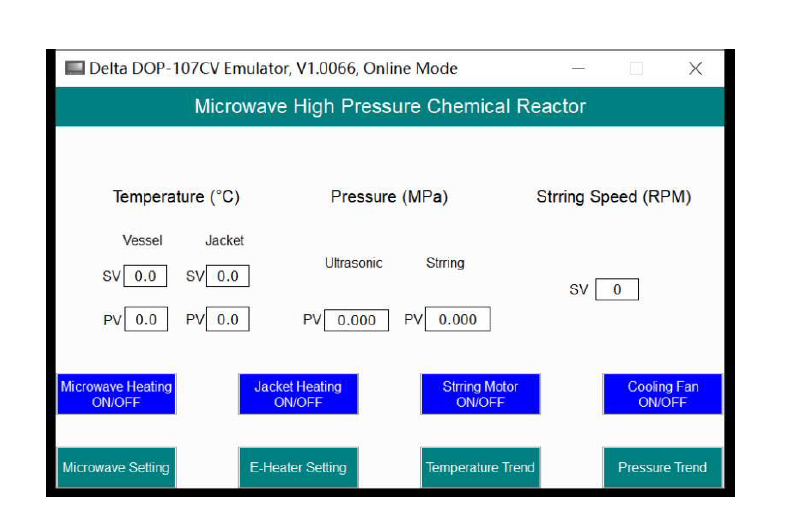

PLC touch screen central controller, programmable
Safety rupture disk device is installed
Applications: chemical synthesis, materials processing, biofuel, biomaterial and engineering manufacturing
Power input voltage AC230V +/-10%, single phase
One year standard limited warranty
Combined benefits of high-pressure, ultrasonication and/or microwave
Volume: 500/1000/2000 mL
Temperature: Room~300℃
Pressure: Maximum 8MPa
Material: vessel SUS316L stainless steel with glass flange bottom
Optional PTFE inner chamber or glass/quartz cup
Swagelok needle valve and VivTek fittings installed (pressure gauge)
Gas port and liquid dipping tube port using Swagelok needle valves
Ultrasonicator: power 1500-2000W ouput adjustable, 24KHz
Agitator: sonication or magnet coupled mechanical stirring
Stirring 150W gear motor, controlled by VFD, speed 0-1200RPM
Heating method: heating jacket + microwave
Heating control: PID or power setting
Electrical heating jacket up to 200C
Microwave heated up to 1000 watts
Microwave, 2450 MHz, power adjustable
Two CW-3000 chillers for cooling magnetron and magnet coupled stirring
PLC touch screen central controller, programmable
Safety rupture disk device is installed
Applications: chemical synthesis, materials processing, biofuel, biomaterial and engineering manufacturing
Power input voltage AC230V +/-10%, single phase
One year standard limited warranty
| Model | Volume |
Temperature | Sonication |
Voltage |
| MUHiPR-V500S |
500mL | --- |
AC230V 8A | |
| MUHiPR-V1000S | 1000mL | Reactor Vessel | --- |
AC230V 10A |
| MUHiPR-V2000S |
2000mL | Room~300C |
--- |
AC230V 15A |
| MUHiPR-V500U | 500mL | Magnetron 1000W | 100-1500W | AC230V 13A |
| MUHiPR-V1000U |
1000mL | Jacket <200C | 100-1500W |
AC230V 16A |
| MUHiPR-V2000U | 2000mL | 100-2000W | AC230V 20A |
