Description
High performance industrial level overhead stirring system

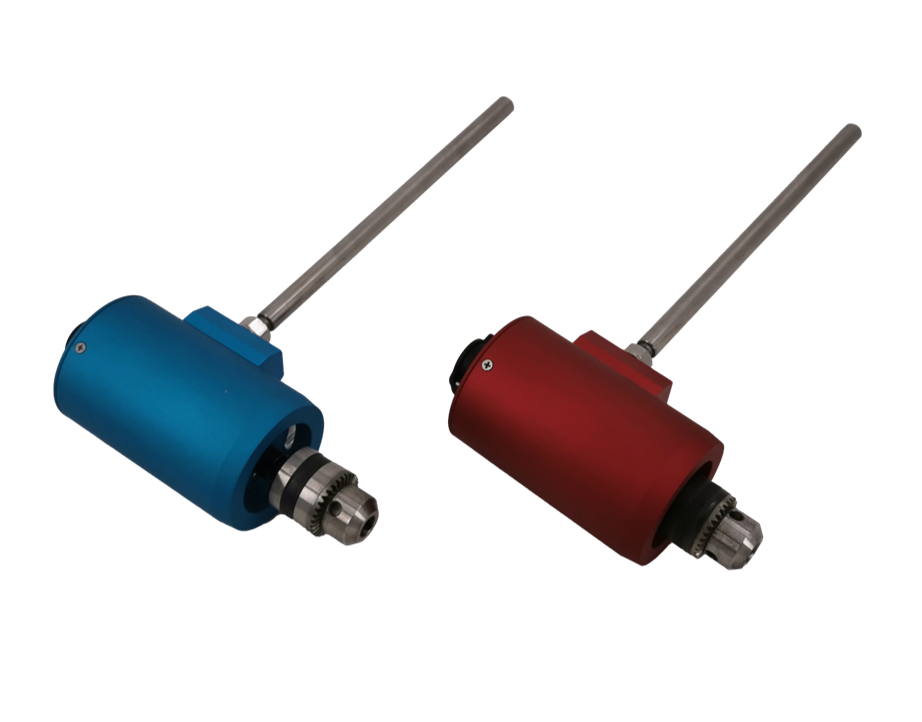

High torque BLDC motor with brakes
Full aluminum case for fast heat release and cooling

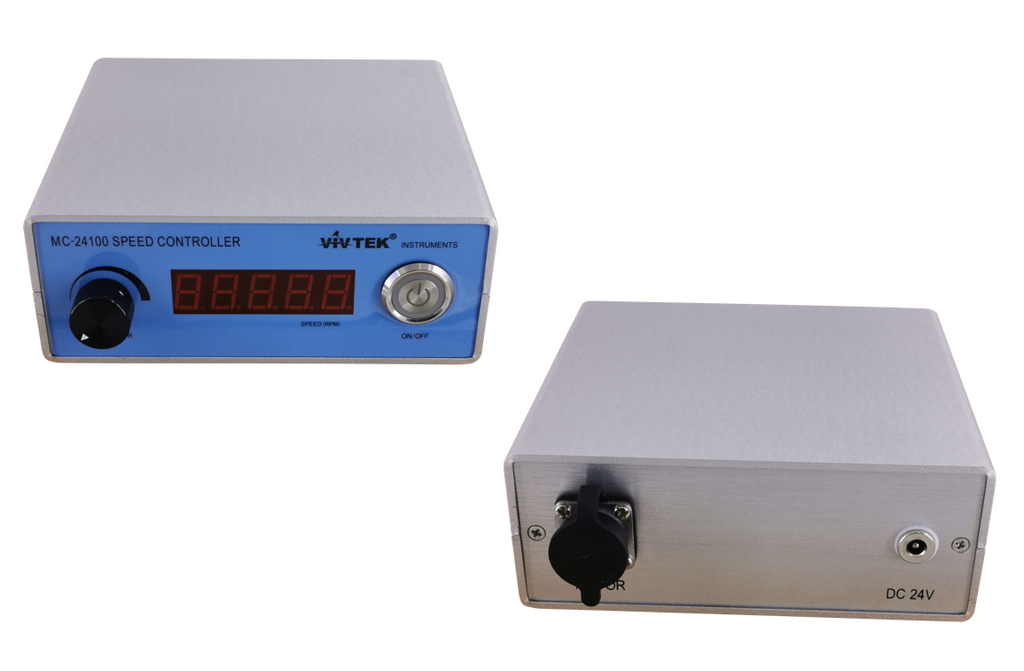

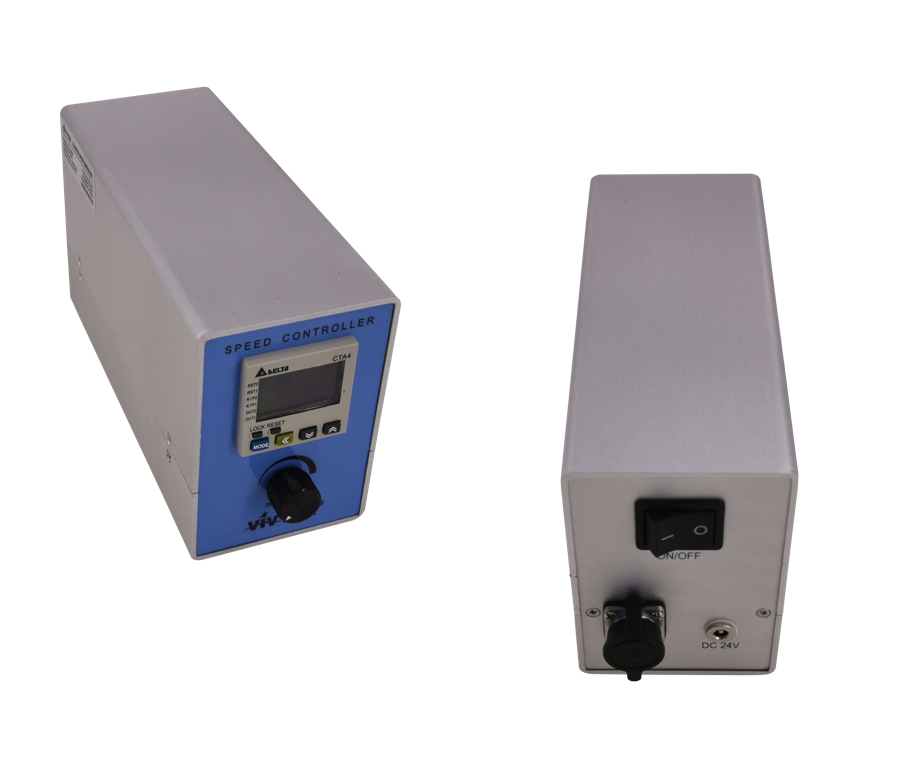

Brushless DC motor drive/controller
Input DC24V 60-100W
Power supply AC100-240V to DC24V 60W or 100W
Speed range 0-3000RPM, digital display
Stirring capacity 20L for 50W and 50L for 100W
Mounting point M12x1.5 female threads, rod D15X200mm (8inch)
Mounting clamp included
Chuck clamp 3-15mm diameter

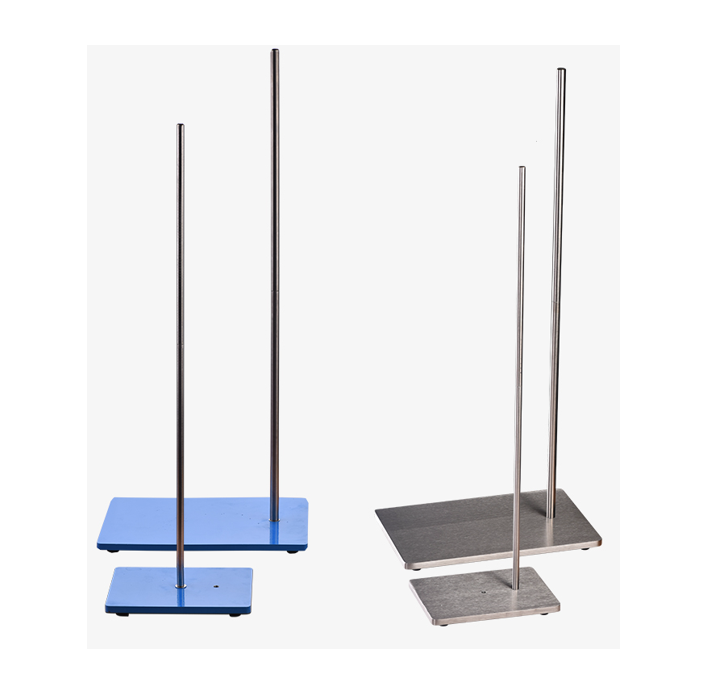

Stainless steel or regular steel stand frame for mounting the motor

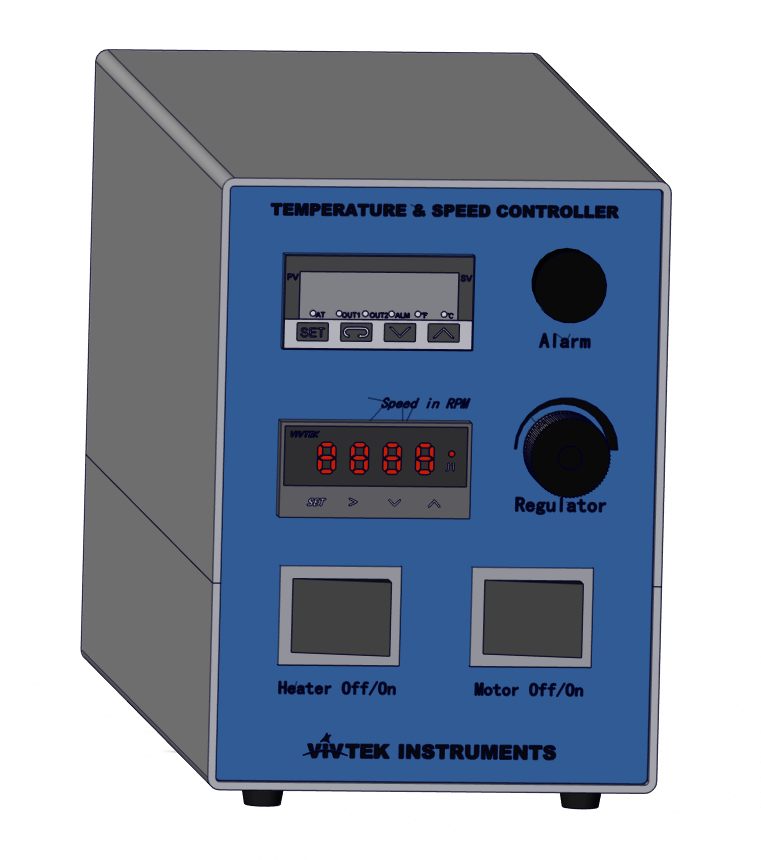

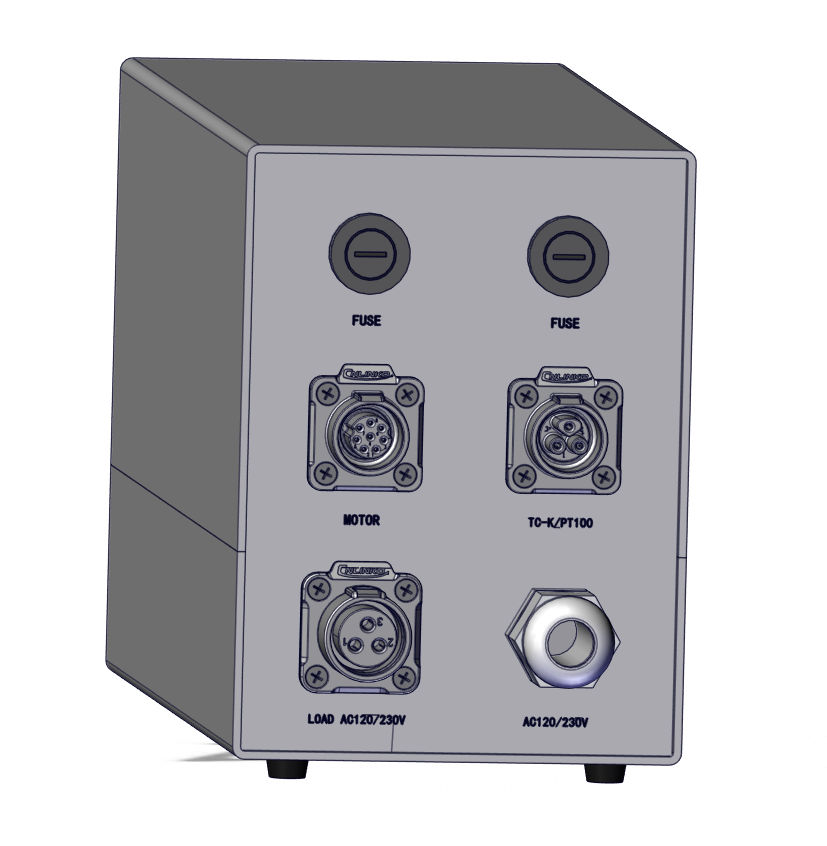

Optional Temperature/Speed Combined Control Box
Input voltage AC115V or 230V 15AOutput to BLDC motor and heating device
Maximum heating current 10A (heating voltage same as input voltage)
Regular NEMA female plug for heating device connection
Temperature controller Delta 4824 PID Intelligent control
