Description

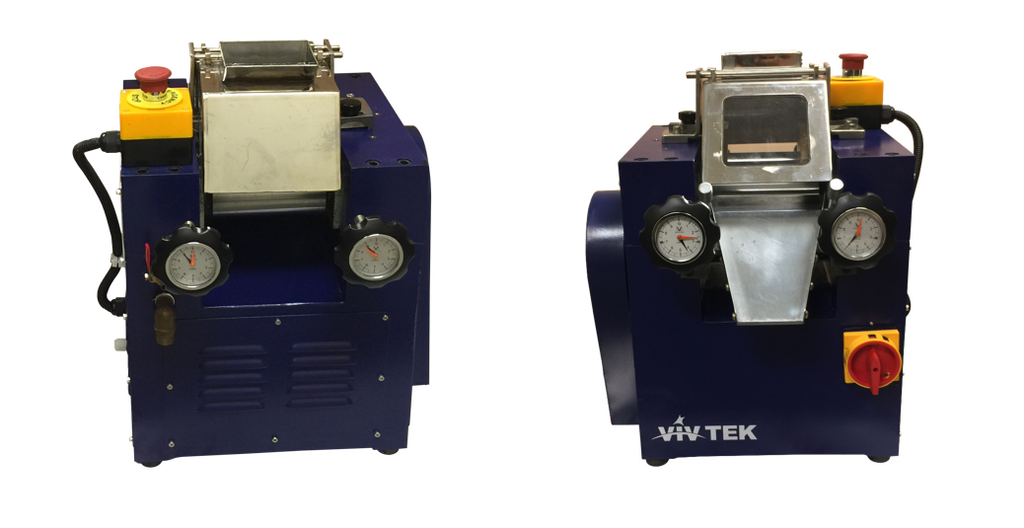

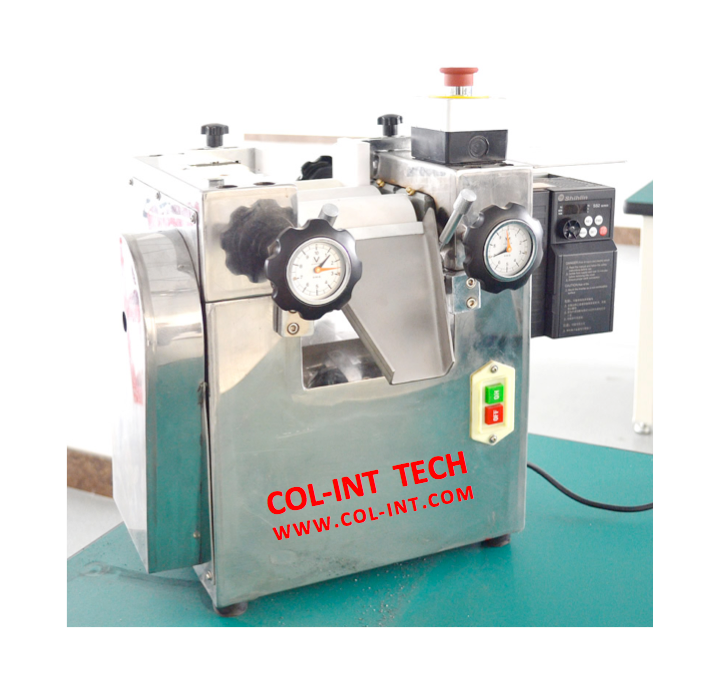

State-of-the-art roll grinder mill for lab applications
Precise control of grinding size
Gap spacing easy to adjust, and remains consistent throughout operation
Ideal for for mixing electronic thick film inks, high performance ceramics, cosmetics, paints, printing inks, adhesives, epoxy, sealants, pharmaceuticals and many other viscous materials
Roller Material: Chrome Steel/Alumina/Zirconia
Diameter of Roller 2.5” (65mm)
Length of Roller 5.0” (127mm)
Grinding Results 5-20 micron (um) /3 times
Roller Speed Ratio (Fixed) 1:3:8
Capacity 5kg/11lbs per hour (vary with materials)
Speed of Roller: Slow Roller 30 rpm, mid Roller 90 rpm, fast Roller 240 rpm
Motor Power 1 HP / 750 Watts
Safety Guard Cover SUS304 flexible cover with feeding port and watch window
Weight 175 lbs (80kg)
Dimensions 17”x17”x16” (425mmx420mmx400mm)
Precise control of grinding size
Gap spacing easy to adjust, and remains consistent throughout operation
Ideal for for mixing electronic thick film inks, high performance ceramics, cosmetics, paints, printing inks, adhesives, epoxy, sealants, pharmaceuticals and many other viscous materials
Roller Material: Chrome Steel/Alumina/Zirconia
Diameter of Roller 2.5” (65mm)
Length of Roller 5.0” (127mm)
Grinding Results 5-20 micron (um) /3 times
Roller Speed Ratio (Fixed) 1:3:8
Capacity 5kg/11lbs per hour (vary with materials)
Speed of Roller: Slow Roller 30 rpm, mid Roller 90 rpm, fast Roller 240 rpm
Motor Power 1 HP / 750 Watts
Safety Guard Cover SUS304 flexible cover with feeding port and watch window
Weight 175 lbs (80kg)
Dimensions 17”x17”x16” (425mmx420mmx400mm)
