Description

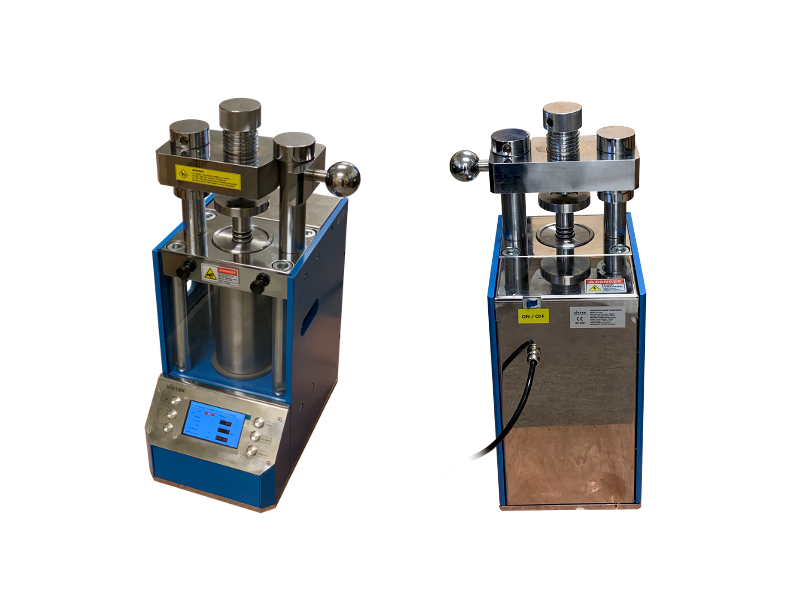

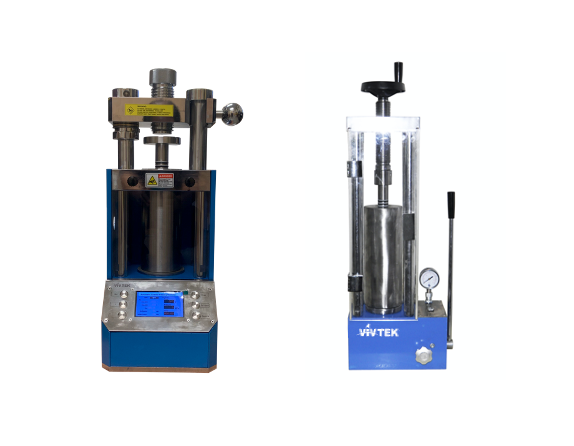

Compact cold isostatic pressing machine, designed for laboratory applications.
Easy to use and maintain, ideal for powder pressing.

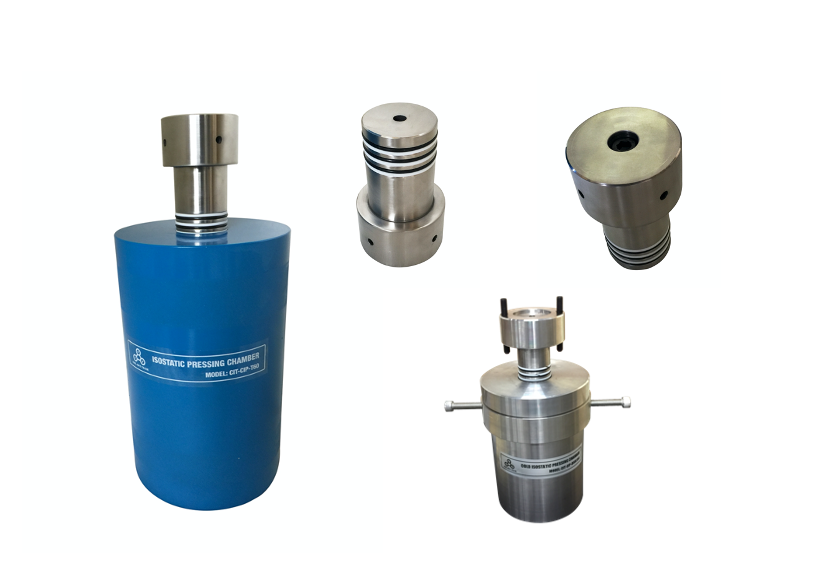

Working oil chamber: D30xL150, D40xL200, D50xL250
Maximum travel distance: 40/40/50mm
CIP pressure stability: <1MPa/10min
Maximum CIP pressure: 300MPa/43500psi
Hydraulic Pressing Force: 20/40/60 Tons
Safety Enclosure: yes, steel structure for safe operation
Pressure control: manual or digital automatic
Hydraulic pump pressure <40MPa
Work with 5W-10 or 5W-20 mobil oil
Built-in safety enclosure for safety requirements
Accessories include oil tin, hex wrench, o-rings
One-year limited manufacturer warranty
Easy to use and maintain, ideal for powder pressing.
Working oil chamber: D30xL150, D40xL200, D50xL250
Maximum travel distance: 40/40/50mm
CIP pressure stability: <1MPa/10min
Maximum CIP pressure: 300MPa/43500psi
Hydraulic Pressing Force: 20/40/60 Tons
Safety Enclosure: yes, steel structure for safe operation
Pressure control: manual or digital automatic
Hydraulic pump pressure <40MPa
Work with 5W-10 or 5W-20 mobil oil
Built-in safety enclosure for safety requirements
Accessories include oil tin, hex wrench, o-rings
One-year limited manufacturer warranty
| Model | Max. Force | CIP Piston | CIP Depth |
CIP Travel |
Weight |
| CIP-M20T | 20 ton | ϕ30mm |
150mm |
40mm |
275lbs |
| CIP-A20T | 20 ton | ϕ30mm | 150mm | 40mm | 300lbs |
| CIP-M40T | 40 ton | ϕ40mm | 200mm | 40mm | 400lbs |
| CIP-A40T | 40 ton | ϕ40mm | 200mm | 40mm | 400lbs |
| CIP-M60T | 60 ton | ϕ50mm | 250mm | 50mm | 750lbs |
| CIP-A60T | 60 ton | ϕ50mm | 250mm | 50mm | 750lbs |
