Description

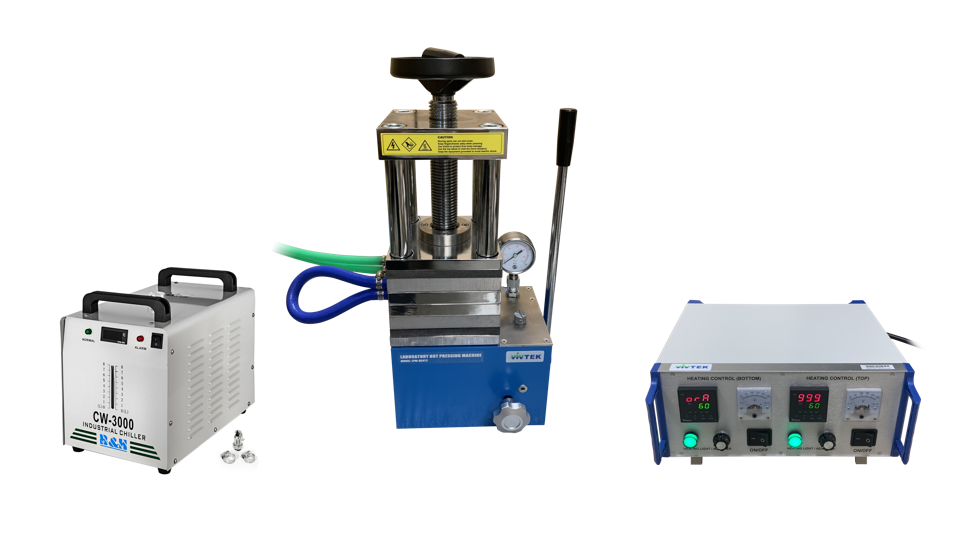

Electrically heated hot pressing machines
Built-in hydraulic pump with auto return function.

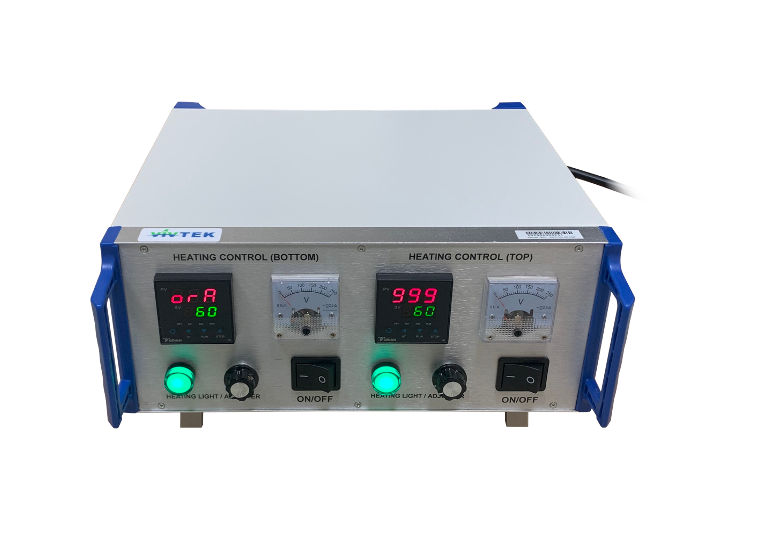

Single or double heated plate controlled by PID digital temperature controller.
Forced sample cooling by water circulation after pressing (optional)
Maximum pressure: 24 or 40 metric tons
Working plate: 140x140(mm) or 180x180mm
Maximum Temperature: 300 ℃
Maximum travel distance: 30mm
K-type thermocouple
CW-3000 industrial chiller (radiator type, no compressor)
Accessories included: Cooling chiller, temperature controller
One-year limited manufacturer warranty
Built-in hydraulic pump with auto return function.
Single or double heated plate controlled by PID digital temperature controller.
Forced sample cooling by water circulation after pressing (optional)
Maximum pressure: 24 or 40 metric tons
Working plate: 140x140(mm) or 180x180mm
Maximum Temperature: 300 ℃
Maximum travel distance: 30mm
K-type thermocouple
CW-3000 industrial chiller (radiator type, no compressor)
Accessories included: Cooling chiller, temperature controller
One-year limited manufacturer warranty
Model | Max. Force | Piston | Hot Plate | Heating |
Weight |
LPM-H24T1 | 24 ton | ϕ95mm | 14x14cm | 1x350W |
250lbs |
LPM-H24T2 | 24 ton | ϕ95mm | 14x14cm | 2x350W |
250lbs |
LPM-H40T1 | 40 ton | ϕ130mm | 18x18cm | 1x500W |
450lbs |
LPM-H40T2 | 40 ton | ϕ130mm | 18x18cm | 2x500W |
450lbs |
